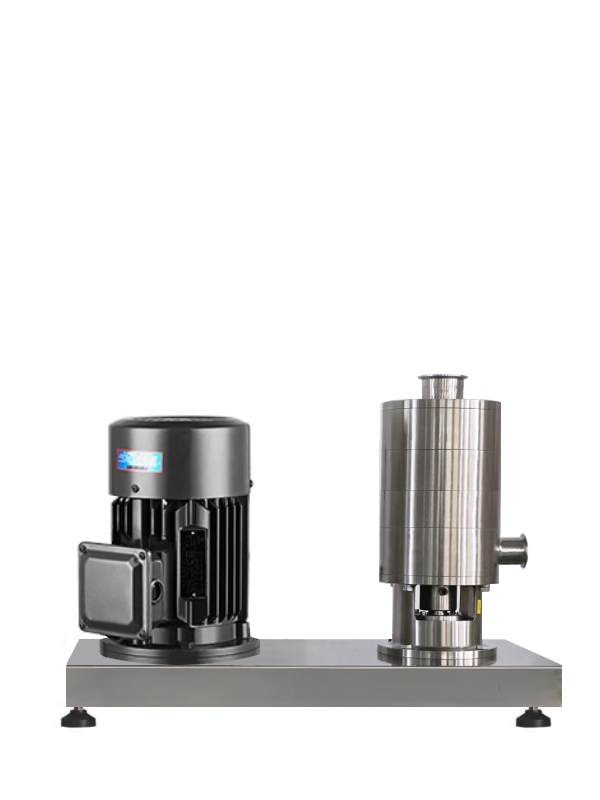

High Efficiency Continuous Emulsifying Mixer







Technical Parameter

Model
DN Input
DN Output
Rev.
Main Motor
Capacity
CSM -3S2000
40mm
40mm
3000rpm
2.2kw
2000L/H
CSM -3S4000
40mm
40mm
3000rpm
3.75kw
4000L/H
CSM -3S6000
40mm
40mm
3000rpm
5.5kw
6000L/H
CSM -3S8000
50mm
50mm
3000rpm
7.5kw
8000L/H
CSM -3S10T
50mm
50mm
3000rpm
9.0kw
10T/H
CSM -3S12T
50mm
50mm
3000rpm
11.0kw
12T/H
CSM -3S20T
50mm
50mm
3000rpm
15.0kw
20T/H


Application
Chemical Industry:
Printing ink, Functional ink, Paint, Latex paint, Building coating, Nano coating, Coating auxiliary, Pigment, Dye, Textile
auxiliary, Adhesive, Silicone fluid emulsion, Surfactant,Lubricant, Heavy oil emulsion, Diesel oil emulsion
Food Industry:
Chili sauce, Sesame sauce, Fruit tea, Ice cream, Cream, Jam, Bean paste, Peanut milk, Protein milk, Dairy products,
Essence, Condiments, Food and Beverage
Daily Chemical Industry:
Toothpaste, Detergent, Cosmetics, Spices, Balsam
Pharmaceutical Industry:
Syrup, Nutrient solution, Ointment, Biologics, Vaccines, Oral liquid, Fungicides, Injections, Antibiotics, Droplets

Performance Advantages
The CSM mixer series is a high-efficiency emulsifier for continuous production of fine materials.
The speed can reach 3000 revolutions per minute, speed regulation can be achieved through energy-saving and
environmentally friendly frequency converters.
Fineness: 100nm - 3um. High dispersion efficiency and good product quality, 100% materials emulsion.
