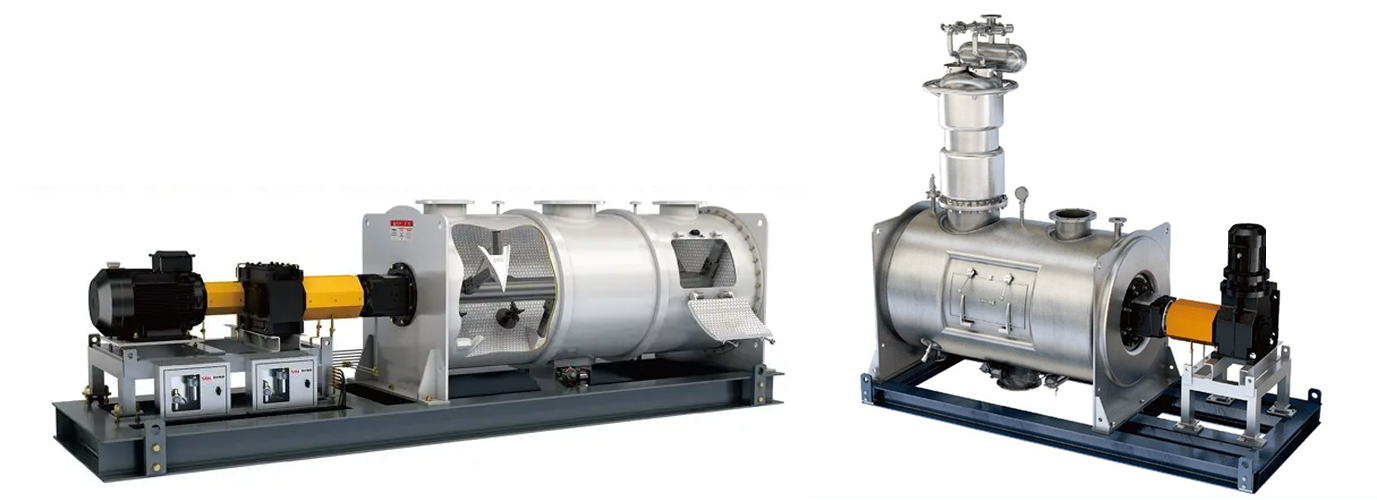

Plough-shear Mixer





Structure

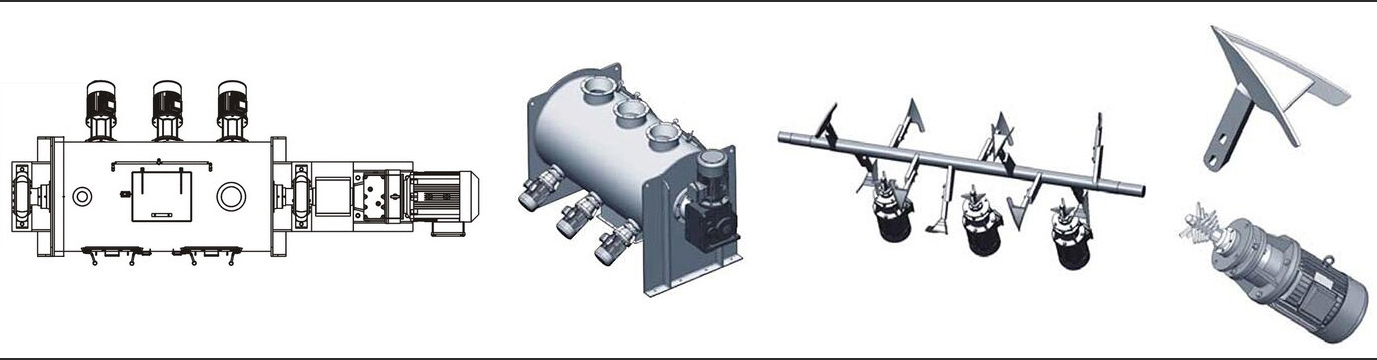

Plan for Plough-shear Mixer
Side View
Mixing Main Components
Plowing Blade





Performance Advantages

Plough-shear mixer is a specialized horizontal mixer, which is suitable for mixing materials that are prone to clumping (such as fibers or moisture prone clumping),
mixing powder materials with poor flowability, mixing viscous materials, mixing powders with liquid added clumps and mixing low viscosity fluids.
Suitable for industries such as Ceramic clay, Refractory materials, Wear-resistant materials, Hard alloys, Food additives, Pre mixed mortar, Composting technology,
Sludge treatment, Rubber and Plastics, Firefighting agents and Sspecial building materials.
Uniform mixing, low energy consumption.



Technical Parameter

Model
Mixing Volume
Rotor Speed
Loading Rate
Power
Capacity/Batch
AGM -100L
100L
120rpm
40 - 60%
7.5kw
100L
AGM -300L
300L
120rpm
40 - 60%
15kw
300L
AGM -600L
600L
95rpm
40 - 60%
18.5kw
600L
AGM -2.4T
2.4T
66rpm
40 - 60%
37kw
2400L
